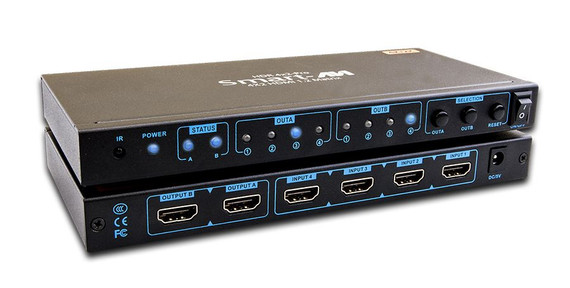

SmartAVI HDR 4x2 Pro
• Discontinued ⓘ
This product has been discontinued by the manufacturer and is no longer available for purchase.
Looking for a replacement or comparable alternative?
Request Options
Lead time and availability are subject to change without notice.
Product Code:
HDR4X2PROS
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code
4K/2K HDMI 4x2 Router with IR Remote
The SmartAVI HDR 4x2-Pro allows users to switch four HDMI inputs with two high-definition displays. Two outputs give users flexibility while routing HD audio and video signals with two displays. The HDR 4x2-Pro eliminates the need to disconnect and reconnect HDMI sources to a single display. The device is compatible with computer sources, live HD television feeds, Blu-ray players, gaming consoles, video cameras and more. Controlling the matrix switch is simple thanks to the front tactile buttons and the included infrared remote control.
Applications
- Wall Displays
- Digital Media
- Airports
- Dealer Rooms
- Control Rooms
- Audio/Visual Presentations
- Shopping Centers
- Security
- Point-of-Sale
- Hotels/Resort
Features
- Supports 4K/2K Input/Output
- 4x2 non-blocking, single-link HDMI matrix switch
- Distributes any of the four inputs to any combination of the two HDMI output displays
- Includes IR remote
- HDCP and HDMI 1.4 Compliant
SmartAVI HDR 4x2 Pro Specifications
| Mechanical | |
| Height | 0.75 in. (1.90 cm) |
| Width | 7.75 in. (19.68 cm.) |
| Depth | 3.65 in. (9.27 cm.) |
| Weight | 0.8 lbs |
| Format | HDMI 4K/2K |
| Video Bandwidth | Single-link 340MHz [10.2 Gbps] |
| Resolution | 480i, 480p, 720i, 720p, 1080i, 1080p |
| Input Interface | (4) HDMI [7.1ch audio & video] |
| Output Interface | (2) HDMI [7.1ch audio & video] |
| Connector | Type A [19-pin female] |
| Maxium Distance | 25 ft |
| Video Power | External 100-240 VAC/5VDC2A @ 10W |
