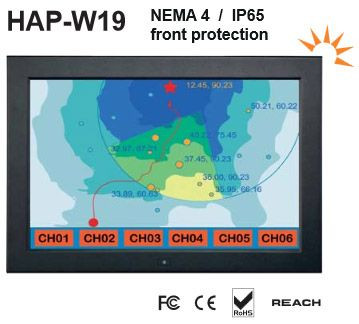

UltraView HAP-W19
• Available ⓘ
This product is available for order. Lead times vary by product and manufacturer.
A lead time will be provided after the order has been placed, or upon request before ordering.
Request Current Lead Time
Lead time and availability are subject to change without notice.
MSRP:
$1,633.00
$1,508.00
-->
(You save
$125.00
)
19" Widescreen High Brightness LED LCD Display with NEMA 4 / IP65 Protection
Display Features & Benefits
- 19" widescreen LCD with high brightness 1000 cd/m_
- Green LED-backlit panel technology
- Panel-mount, VESA mount
- Rugged construction against external impact
- 6mm(.24 in) aluminum front bezel with protective glass & water proof sealed gasket
- Standard with VGA
| Mechanical | |
| Height | 13.3 in. (33.8 cm.) |
| Width | 20.0 in. (50.9 cm.) |
| Depth | 2.6 in. (6.4 cm.) |
| Weight | 11.0 lbs. (5.0 kg.) |
| Package Dimensions (HxDxW) | 26.1 x 4.5 x 21 inch (662 x 115 x 533 mm) |
| Package Weight | 22.0 lbs. (10.0 kg.) |
| Environmental | |
| Operating Temperature | 0 to 55°C Degree |
| Storage Temperature | -5 to 60°C Degree |
| Relative Humidity | 5~90%, non-condensing |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Power | Auto-sensing 100 to 240VAC, 50 / 60Hz |
| LCD Panel | |
| Display Size | 19" Widescreen TFT |
| Resolution | 1440 x 900 |
| Brightness (cd/m2) | 1000 |
| Colors | 16.7 M |
| Contrast Ratio (typ) | 1000:1 |
| Viewing angle (H/V) | 160° x 160° |
| Active area (mm) | 408 x 255 |
| Signal Input | VGA, DVI-D |
19" Widescreen High Brightness LED LCD Display with NEMA 4 / IP65 Protection
Display Features & Benefits
- 19" widescreen LCD with high brightness 1000 cd/m_
- Green LED-backlit panel technology
- Panel-mount, VESA mount
- Rugged construction against external impact
- 6mm(.24 in) aluminum front bezel with protective glass & water proof sealed gasket
- Standard with VGA
| Mechanical | |
| Height | 13.3 in. (33.8 cm.) |
| Width | 20.0 in. (50.9 cm.) |
| Depth | 2.6 in. (6.4 cm.) |
| Weight | 11.0 lbs. (5.0 kg.) |
| Package Dimensions (HxDxW) | 26.1 x 4.5 x 21 inch (662 x 115 x 533 mm) |
| Package Weight | 22.0 lbs. (10.0 kg.) |
| Environmental | |
| Operating Temperature | 0 to 55°C Degree |
| Storage Temperature | -5 to 60°C Degree |
| Relative Humidity | 5~90%, non-condensing |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Power | Auto-sensing 100 to 240VAC, 50 / 60Hz |
| LCD Panel | |
| Display Size | 19" Widescreen TFT |
| Resolution | 1440 x 900 |
| Brightness (cd/m2) | 1000 |
| Colors | 16.7 M |
| Contrast Ratio (typ) | 1000:1 |
| Viewing angle (H/V) | 160° x 160° |
| Active area (mm) | 408 x 255 |
| Signal Input | VGA, DVI-D |
