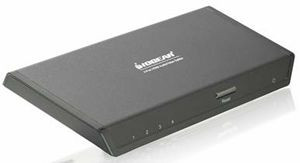

IOGear GVS184
• Available ⓘ
This product is available for order. Lead times vary by product and manufacturer.
A lead time will be provided after the order has been placed, or upon request before ordering.
Request Current Lead Time
Lead time and availability are subject to change without notice.
Replacement:
556
$189.95
-->
4-Port HDMI Audio/Video Splitter
The IOGEAR GVS184 is a 4-Port HDMI Audio/Video Splitter is used to take high definition video from a single HDMI media source and direct it to 4 separate HD TVs or displays. By using today's newest connectivity standard, HDMI v1.3b (High Definition Multimedia Interface) and being High-bandwidth Digital Content Protection (HDCP) compliant, the GVS184 is able to support the highest quality HD video and multi-channel audio, play all the top DVD or Blu-Ray movies, and carry the best signal from source to 2 HD TVs or displays. Providing a data rate of up to 2.25Gbps, the high bandwidth allows for the transmission of large amounts of information at a very high rate of speed. It is compatible with TV resolution: 480i/480p/720p/1808i/1080p. It is also compatible with computer resolution: VGA/SVGA/XGA/SXGA/UXGA.
IOGEAR's HDMI Audio/Video Splitters have the ability to auto-downscale the display resolution to fit all displays that you have connected to the splitter.* No more hassle to setup display resolution manually from your HD media source.
*Note: For HD media sources that support auto video resolution scaling.
IOGEAR 4 Port HDMI Splitter Backview
IOGEAR GVS184 Features:
- Stream a single HD media source to 4 displays
- Auto-downscale video resolution to fit all displays*
- Zero signal loss from source to display
- Full HD 1080p support
- HDMI 1.3b Certified and HDCP Compliant
- Front panel reset button
- Power LED and ActivePort LED
-
Plug-N-Play
*Note:For HD media sources that support auto video resolution scaling.
IOGEAR 4 Port HDMI Splitter Application Diagram
Requirements:
HD TVs or displays with HDMI input connections
HD media source with HDMI output connection
Package Includes:
- 1 x 4-Port HDMI Splitter
- 1 x Power Adapter
- 1 x Quick Start Guide
- 1 x Warranty Card
IOGEAR GVS184 Specifications:
| Mechanical | |
| Height | 0.875 in. (2.2 cm.) |
| Width | 8.0 in. (20.3 cm.) |
| Depth | 4.0 in. (10.2 cm.) |
| Weight | 0.86 lbs. (0.39 kg.) |
| Housing | |
| Case | Plastic |
| LEDs | |
| Power On | 1 |
| Port Status | 4 (Output) |
| Power Consumption | 12 Watts (max) |
| Power | |
| Voltage | DC6V |
| Amps | 2A |
| Data Rate | Up to 2.25Gbps |
| Video Resolution | 480i / 480p / 720p / 1080i / 1080p; VGA / SVGA / XGA / SXGA / UXGA |
| Cable Connections | |
| Input | HDMI |
| Output | HDMI |
| Connectors (Input) | 1 x HDMI Type A 19 Pin Female |
| Connectors (Output) | 4 x HDMI Type A 19 Pin Female |
| Environment | |
| Operation Temperature | 32-122F (0C-50C) |
| Humidity | 0-80% RH (Non-Condensing) |
| Storage Temperature | -4F-140F (-20C-60C) |
| Switches | |
| Reset | 1 x Reset Button |
| POP Information | |
| 10" Peg Hook | 3 |
| 6" Peg Hook | 2 |
4-Port HDMI Audio/Video Splitter
The IOGEAR GVS184 is a 4-Port HDMI Audio/Video Splitter is used to take high definition video from a single HDMI media source and direct it to 4 separate HD TVs or displays. By using today's newest connectivity standard, HDMI v1.3b (High Definition Multimedia Interface) and being High-bandwidth Digital Content Protection (HDCP) compliant, the GVS184 is able to support the highest quality HD video and multi-channel audio, play all the top DVD or Blu-Ray movies, and carry the best signal from source to 2 HD TVs or displays. Providing a data rate of up to 2.25Gbps, the high bandwidth allows for the transmission of large amounts of information at a very high rate of speed. It is compatible with TV resolution: 480i/480p/720p/1808i/1080p. It is also compatible with computer resolution: VGA/SVGA/XGA/SXGA/UXGA.
IOGEAR's HDMI Audio/Video Splitters have the ability to auto-downscale the display resolution to fit all displays that you have connected to the splitter.* No more hassle to setup display resolution manually from your HD media source.
*Note: For HD media sources that support auto video resolution scaling.
IOGEAR 4 Port HDMI Splitter Backview
IOGEAR GVS184 Features:
- Stream a single HD media source to 4 displays
- Auto-downscale video resolution to fit all displays*
- Zero signal loss from source to display
- Full HD 1080p support
- HDMI 1.3b Certified and HDCP Compliant
- Front panel reset button
- Power LED and ActivePort LED
-
Plug-N-Play
*Note:For HD media sources that support auto video resolution scaling.
IOGEAR 4 Port HDMI Splitter Application Diagram
Requirements:
HD TVs or displays with HDMI input connections
HD media source with HDMI output connection
Package Includes:
- 1 x 4-Port HDMI Splitter
- 1 x Power Adapter
- 1 x Quick Start Guide
- 1 x Warranty Card
IOGEAR GVS184 Specifications:
| Mechanical | |
| Height | 0.875 in. (2.2 cm.) |
| Width | 8.0 in. (20.3 cm.) |
| Depth | 4.0 in. (10.2 cm.) |
| Weight | 0.86 lbs. (0.39 kg.) |
| Housing | |
| Case | Plastic |
| LEDs | |
| Power On | 1 |
| Port Status | 4 (Output) |
| Power Consumption | 12 Watts (max) |
| Power | |
| Voltage | DC6V |
| Amps | 2A |
| Data Rate | Up to 2.25Gbps |
| Video Resolution | 480i / 480p / 720p / 1080i / 1080p; VGA / SVGA / XGA / SXGA / UXGA |
| Cable Connections | |
| Input | HDMI |
| Output | HDMI |
| Connectors (Input) | 1 x HDMI Type A 19 Pin Female |
| Connectors (Output) | 4 x HDMI Type A 19 Pin Female |
| Environment | |
| Operation Temperature | 32-122F (0C-50C) |
| Humidity | 0-80% RH (Non-Condensing) |
| Storage Temperature | -4F-140F (-20C-60C) |
| Switches | |
| Reset | 1 x Reset Button |
| POP Information | |
| 10" Peg Hook | 3 |
| 6" Peg Hook | 2 |
