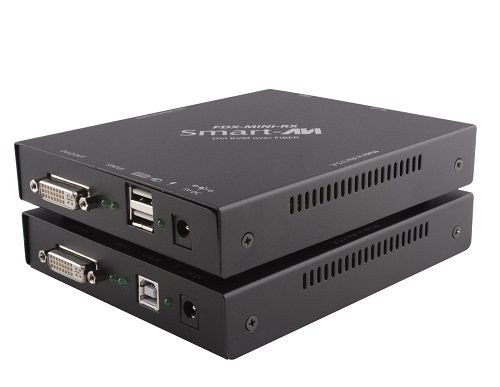

SmartAVI FDX-Mini
• Available ⓘ
This product is available for order. Lead times vary by product and manufacturer.
A lead time will be provided after the order has been placed, or upon request before ordering.
Request Current Lead Time
Lead time and availability are subject to change without notice.
MSRP:
$699.00
$544.68
-->
(You save
$154.32
)
Extension of any DVI-D, USB Keyboard, Mouse, and RS232 Signal up to 1,400 Feet
For reliable, uninterrupted and long-distance DVI-D KVM extension, the FDX-Mini provides the best solution with its fiber optic extension capabilities. Users can bridge large gaps that they ordinarily could not with this compact device. The FDX-Mini-S includes the transmitter and receiver, for complete point-to-point signal extension, with no need for any other hardware or software. Using FDX-Mini technology, this fiber DVI extender is capable of sending a DVI-D signal up to 1,400 feet (426.7 meters) over a conventional and inexpensive multimode fiber cable. Supported resolutions up to 1920x1200x60Hz. As with all DVI-D and USB connections, the signals are transmitted via the extender. The FDX-Mini also has USB keyboard, mouse, and RS-232 support, giving you the ability to control your displays or devices remotely
Features:
- Top Signal Quality at Maximum Extension Over Multimode Fiber (1,400 ft.)
- Superior Image Quality at all Resolutions
- Video Resolutions up to 1920 x 1200 at 60Hz (1280 x 1024 at 75Hz)
- Customizable/Programmable DDCTable
- Supports USB Keyboard/Mouse
- Supports DVI-D
- SRS232 at 9600bps
- Fiber PlugType LC
- CompatibleWith all Operating Systems
- CompatibleWith all Major KVM Switches
- Compact Metal Casing
Applications:
- Corporate or Educational Presentations
- Financial (Remote Servers/User Control)
- Call Centers
- Industrial (Long-RangeWorkstation Isolation)
- Information Terminals/Kiosks
- Airport Installations (Air Traffic Control/Passenger Information)
- KVM Extension where Exceptional Quality of Signal is Crucial
- Medical (Remote Operation Away from Sensitive/Magnetic Equipment)
- Recording (for Large Studios where Editing/ Mixing Stations are Compact and/or Require Complete Silence)
Diagram
Specifications:
| Video | |
| Format | HDMI 1.4 |
| Maximum Pixel Clock | 300 MHz |
| Input Interface | (8) HDMI (female) |
| Output Interface | (1) HDMI (female) |
| Other | |
| USB | USB Keyboard and Mouse Compliant |
| Fiber Extender | Fiber • 225m @ Multimode 62,5μ • 450m @ Multimode 62,5μ Fiber-Plug type LC |
| RS-232 | Data up to 9600bps |
| Weight | 2 lbs. |
| Dimensions | 4.5"x5.5"x1.70" |
Extension of any DVI-D, USB Keyboard, Mouse, and RS232 Signal up to 1,400 Feet
For reliable, uninterrupted and long-distance DVI-D KVM extension, the FDX-Mini provides the best solution with its fiber optic extension capabilities. Users can bridge large gaps that they ordinarily could not with this compact device. The FDX-Mini-S includes the transmitter and receiver, for complete point-to-point signal extension, with no need for any other hardware or software. Using FDX-Mini technology, this fiber DVI extender is capable of sending a DVI-D signal up to 1,400 feet (426.7 meters) over a conventional and inexpensive multimode fiber cable. Supported resolutions up to 1920x1200x60Hz. As with all DVI-D and USB connections, the signals are transmitted via the extender. The FDX-Mini also has USB keyboard, mouse, and RS-232 support, giving you the ability to control your displays or devices remotely
Features:
- Top Signal Quality at Maximum Extension Over Multimode Fiber (1,400 ft.)
- Superior Image Quality at all Resolutions
- Video Resolutions up to 1920 x 1200 at 60Hz (1280 x 1024 at 75Hz)
- Customizable/Programmable DDCTable
- Supports USB Keyboard/Mouse
- Supports DVI-D
- SRS232 at 9600bps
- Fiber PlugType LC
- CompatibleWith all Operating Systems
- CompatibleWith all Major KVM Switches
- Compact Metal Casing
Applications:
- Corporate or Educational Presentations
- Financial (Remote Servers/User Control)
- Call Centers
- Industrial (Long-RangeWorkstation Isolation)
- Information Terminals/Kiosks
- Airport Installations (Air Traffic Control/Passenger Information)
- KVM Extension where Exceptional Quality of Signal is Crucial
- Medical (Remote Operation Away from Sensitive/Magnetic Equipment)
- Recording (for Large Studios where Editing/ Mixing Stations are Compact and/or Require Complete Silence)
Diagram
Specifications:
| Video | |
| Format | HDMI 1.4 |
| Maximum Pixel Clock | 300 MHz |
| Input Interface | (8) HDMI (female) |
| Output Interface | (1) HDMI (female) |
| Other | |
| USB | USB Keyboard and Mouse Compliant |
| Fiber Extender | Fiber • 225m @ Multimode 62,5μ • 450m @ Multimode 62,5μ Fiber-Plug type LC |
| RS-232 | Data up to 9600bps |
| Weight | 2 lbs. |
| Dimensions | 4.5"x5.5"x1.70" |
