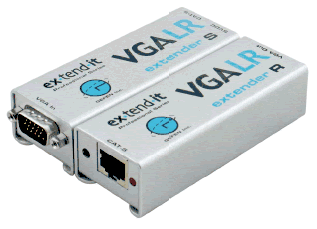

Gefen EXT-VGA-141LR
• Discontinued ⓘ
This product has been discontinued by the manufacturer and is no longer available for purchase.
Looking for a replacement or comparable alternative?
Request Options
Lead time and availability are subject to change without notice.
Product Code:
EXT-VGA-141LR
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code
Extend VGA up to 330 feet
The Gefen VGA Extender (EXT-VGA-141LR) extends any VGA or Component HD display using a Single CAT-5 cable up to 330 feet from your HD source. The EXT-VGA-141LR is a new VGA Extender that goes double the distance of the previous version, and also has a trim pod for fine video adjustment.
How the Gefen EXT-VGA-141LR works:
The VGA Extender LR sender unit connects to your source using the supplied cable. The receiver unit connects to your display - up to 330 feet away. One CAT-5 cable connects the sender and the receiver to each other, extending your video flawlessly.
Gefen EXT-VGA-141LR Package Includes:
- VGA Extender S Sender Unit
- VGA Extender R Receive Unit
- 6 foot VGA cable (M-F)
- One 5V external power supply*
* - Power supply connects to sender unit. Receiver is powered through the sender.
Gefen EXT-VGA-141LR Features:
- One CAT-5 cable for extension
- Maintains 1920 x 1200 x 75 resolution video
- Installs in seconds
Gefen EXT-VGA-141LR Specifications:
| Mechanical | |
| Height | 1 in. (2.54 cm.) |
| Width | 1 in. (2.54 cm.) |
| Depth | 4 in. (10.16 cm.) |
| Weight | 3 Lbs. (1.36 kg.) |
| Bandwidth | |
| Video Amplifier | 350 MHz |
| Actual | 120 MHz |
| Input Signal | |
| Video | 1.2 Volts p-p |
| Sync | 5 Volts p-p (TTL) |
| Frequency Range | |
| Horizontal | 15-70 KHz |
| Vertical | 30 - 170 Hz |
| Peripherals | |
| Connectors | |
| Video In | HD-15 |
| Video Out | HD-15 |
| Link Connector | RJ-45 |
| Power | |
| Supply | 5 VDC (External) |
| Consumption | 5 Watts (max.) |
