Gefen EXT-USB-MINI2

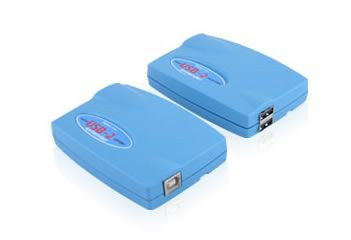

Extend any USB device up to 150 feet away the computerThe Gefen mini USB-2 extender extends any USB device up to 150 feet from the location of your computer, eliminating the 17.5 feet distance limitation of USB. The mini USB-2 sender and receiver units use one CAT-5 cable for extension. It is optimized for applications where two devices, such as the keyboard and mouse, must be operated remotely. The USB-2 extender can even be used to extend surveillance cameras for security purposes.

How it Works
The mini USB-2 extender sender unit is connected to the computer using the supplied USB cable. The remote peripheral(s) are connected to the receiver unit. A category-5 (CAT-5) cable is used to link the sender to the receiver.

Gefen EXT-USB-MINI2 Features:

• Extends any USB device up to 150 feet (50 meters) using CAT5 cable
• Requires no external power adapter
• Saves time and increases productivity
• Contains internal USB hub
• Provides support for any full-speed 12 Mb/s or low-speed 1.5Mb/s USB device
• Use either PC or Mac with USB keyboard/mouse

Gefen EXT-USB-MINI2 Specifications:

• Range: 165 feet (50 meters)
• USB device ports at receiver unit: 2
• USB device support: Full-speed 12 Mb/s
• Low-speed 1.5 Mb/s
• USB cable: 6.6 feet (2 meters)
• USB Send Input Connectors: USB Type B
• USB Send Output Connectors: RJ-45
• USB Receive Input Connectors: USB Type A
• USB Receive Output Connectors: RJ-45
• Power Supply: 300 mA when sender is supplied with 500 mA 600mA when sender is supplied with 1000 mA
• Dimensions Sender: 4” W x 2.8” H x .5” D
• Dimensions Receiver: 4” W x 2.8” H x .5” D
• Temperature Range: 4oC to 40oC
• Shipping Weight: 2 lbs

Gefen EXT-USB-MINI2 Package Includes:

• mini USB-2 extender send unit
• mini USB-2 extender receive unit
• 6.6’ USB cable (A-B)
• User Manual
