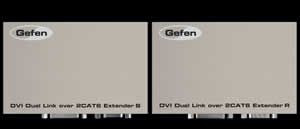

Gefen EXT-DVI-2CAT6DL
• Discontinued ⓘ
This product has been discontinued by the manufacturer and is no longer available for purchase.
Looking for a replacement or comparable alternative?
Request Options
Lead time and availability are subject to change without notice.
Product Code:
EXT-DVI-2CAT6DL
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code
Extends Dual Link DVI up to 200 ft.
The Gefen EXT-DVI-2CAT6DL is a DVI Dual Link over 2CAT6 Extenders. It extends Dual Link DVI and RS-232 over two CAT-6 cables.
The DVI Dual Link over 2CAT6 extends any DVI dual link source, to a display up to 200 feet (60 meters) away at resolutions to 2560x1600 using two CAT-6 cables. Extending dual link resolutions over standard DVI cables have a limitation of 15 feet. Exceeding this distance requires additional repeaters and/or boosters. The DVI Dual Link over 2CAT6 Extender provides an easy to install solution, using CAT-6 cables.
How It Works
Place the DVI Dual Link over 2CAT6 Extender Sender Unit next to the computer source. Use the included DVI cable to connect the computer to the Sender Unit. Connect the Receiver Unit to the display with a DVI dual link cable. Use two CAT-6 cables, up to 200 feet (60 meters), to connect the Sender Unit to the Receiver Unit. Connect the included locking power supplies to the Sender Unit and Receiver Unit, and then connect both power cables to available electrical outlets.
Note: This product supports HDCP pass-through only when using single link resolutions.
Gefen EXT-DVI-2CAT6DL Backview
Gefen EXT-DVI-2CAT6DL Features:
- Supports DVI resolutions to 2560x1600 up to 200 feet (60 feet) over two CAT-6a cables
- EDID Management for Local and Pass-through modes
- Extends RS-232 Control (Rx and Tx only)
- Locking Power Supplies for secure connections
- Energy Star compliant
- Wall-mountable
Package Includes:
- (1) Gefen DVI Dual Link over 2CAT6 Extender - Sender Unit
- (1) Gefen DVI Dual Link over 2CAT6 Extender - Receiver Unit
- (1) 6 ft. Dual Link DVI cable (M-M)
- (1) 6 ft. DB-9 RS-232 cable (M-F)
- (2) 5V DC Locking Power Supplies
- (1) User Manual
Gefen EXT-DVI-2CAT6DL Application Diagram
Gefen EXT-DVI-2CAT6DL Specifications:
| Mechanical | |
| Width | 5.0 in. (12.7 cm.) |
| Height | 1.25 in. (3.18 cm.) |
| Depth | 3.4 in. (8.6 cm.) |
| Weight | 4 lbs. (1.8 kgs.) |
| Maximum Pixel Clock | 165 MHz |
| Input Signals | |
| Input Video Signal | 1.2 Volts p-p |
| Input DDC Signal | 5 Volts p-p (TTL) |
| Connectors | |
| DVI Connectors (Sender/Receiver) | DVI-I, 29-pin, female (digital only) |
| Link Connectors (Sender / Receiver) | (2) RJ-45 per unit |
| RS-232 Control (Sender/Receiver) | DB-9 (Sender: female, Receiver: male) |
| Power | |
| Power Supply (Sender/Receiver) | 5 V DC |
| Power Consumption | 10 W per unit (max.) |
| Environmental | |
| Operating Temperature | 0-40C |
Recommended Replacements
Extends Dual Link DVI up to 200 ft.
The Gefen EXT-DVI-2CAT6DL is a DVI Dual Link over 2CAT6 Extenders. It extends Dual Link DVI and RS-232 over two CAT-6 cables.
The DVI Dual Link over 2CAT6 extends any DVI dual link source, to a display up to 200 feet (60 meters) away at resolutions to 2560x1600 using two CAT-6 cables. Extending dual link resolutions over standard DVI cables have a limitation of 15 feet. Exceeding this distance requires additional repeaters and/or boosters. The DVI Dual Link over 2CAT6 Extender provides an easy to install solution, using CAT-6 cables.
How It Works
Place the DVI Dual Link over 2CAT6 Extender Sender Unit next to the computer source. Use the included DVI cable to connect the computer to the Sender Unit. Connect the Receiver Unit to the display with a DVI dual link cable. Use two CAT-6 cables, up to 200 feet (60 meters), to connect the Sender Unit to the Receiver Unit. Connect the included locking power supplies to the Sender Unit and Receiver Unit, and then connect both power cables to available electrical outlets.
Note: This product supports HDCP pass-through only when using single link resolutions.
Gefen EXT-DVI-2CAT6DL Backview
Gefen EXT-DVI-2CAT6DL Features:
- Supports DVI resolutions to 2560x1600 up to 200 feet (60 feet) over two CAT-6a cables
- EDID Management for Local and Pass-through modes
- Extends RS-232 Control (Rx and Tx only)
- Locking Power Supplies for secure connections
- Energy Star compliant
- Wall-mountable
Package Includes:
- (1) Gefen DVI Dual Link over 2CAT6 Extender - Sender Unit
- (1) Gefen DVI Dual Link over 2CAT6 Extender - Receiver Unit
- (1) 6 ft. Dual Link DVI cable (M-M)
- (1) 6 ft. DB-9 RS-232 cable (M-F)
- (2) 5V DC Locking Power Supplies
- (1) User Manual
Gefen EXT-DVI-2CAT6DL Application Diagram
Gefen EXT-DVI-2CAT6DL Specifications:
| Mechanical | |
| Width | 5.0 in. (12.7 cm.) |
| Height | 1.25 in. (3.18 cm.) |
| Depth | 3.4 in. (8.6 cm.) |
| Weight | 4 lbs. (1.8 kgs.) |
| Maximum Pixel Clock | 165 MHz |
| Input Signals | |
| Input Video Signal | 1.2 Volts p-p |
| Input DDC Signal | 5 Volts p-p (TTL) |
| Connectors | |
| DVI Connectors (Sender/Receiver) | DVI-I, 29-pin, female (digital only) |
| Link Connectors (Sender / Receiver) | (2) RJ-45 per unit |
| RS-232 Control (Sender/Receiver) | DB-9 (Sender: female, Receiver: male) |
| Power | |
| Power Supply (Sender/Receiver) | 5 V DC |
| Power Consumption | 10 W per unit (max.) |
| Environmental | |
| Operating Temperature | 0-40C |
