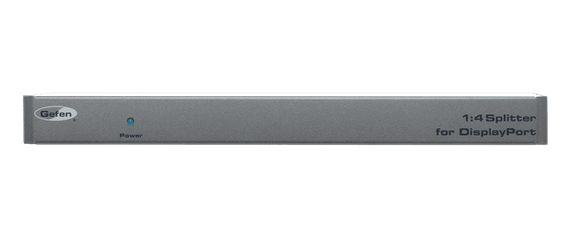

Gefen EXT-DP-144
• Discontinued ⓘ
This product has been discontinued by the manufacturer and is no longer available for purchase.
Looking for a replacement or comparable alternative?
Request Options
Lead time and availability are subject to change without notice.
Product Code:
EXT-DP-144
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code
1:4 DisplayPort Video Splitter
The Gefen EXT-DP-144 1:4 Splitter for DisplayPort allows a DisplayPort-equipped source to be connected to four DisplayPort displays. EDID management provides rapid integration of source and displays. Two or more of these splitters can be connected together to create larger video distribution networks.
How It Works:
Connect a DisplayPort source to the input on the EXT-DP-144 splitter using the supplied DisplayPort cable. Connect up to four DisplayPort high-definition displays to the outputs of the 1:4 Splitter for DisplayPort.
Note: If the source and/or displays are not 100% DisplayPort compliant, a protocol-specific adapter will be required in order to connect the non-compliant source to the splitter, or to connect the splitter to the non-compliant display.
Gefen EXT-DP-144 DisplayPort Video Splitter Rear View
Gefen EXT-DP-144 Features and Benefits:
- Simultaneously displays one DisplayPort source on up to four displays
- Maintains sharp resolutions up to 2560 x 1600
- EDID Management for rapid integration of source and displays
- EDID Reset button
- Supports up to 7.1 channels of linear PCM audio (32 kHz - 192 kHz sampling rate)
- Supports DisplayPort 1.1a
Gefen EXT-DP-144 DisplayPort Video Splitter Diagram
Gefen EXT-DP-144 Package Contents:
- 1 EXT-DP-144 1:4 DisplayPort Video Splitter
- 1 6 ft. DisplayPort cable
- 1 5V/3A DC Power Supply
- 1 Quick Start Guide
Gefen EXT-DP-144 Specifications:
| Mechanical | |
| Width | 10.75 in. (274 mm.) |
| Height | 1.25 in. (32 mm.) |
| Depth | 5.25 in. (134 mm.) |
| Ship Weight | 3 lbs. (1.2 kg) |
| Power | |
| Power Supply | 5V / 3A DC |
| Power Consumption | 15 W (max.) |
| Connectors | |
| Video Input | 1 x DisplayPort, female |
| Video Output | 4 x DisplayPort, female |
| Electrical | |
| Maximum Pixel Clock | 300 MHz |
| Maximum Data Rate | 10.8 Gbps |
| Maximum Resolution | 2560 x 1600 |
| Environmental | |
| Operating Temperature | 32 - 104 °F (0 to + 40 °C) |
