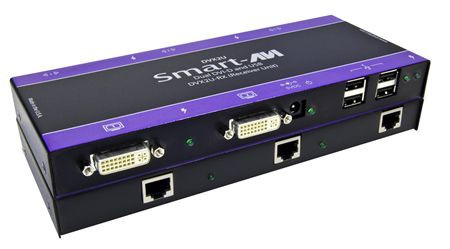

SmartAVI DVX-2US
Product Code:
DVX-2US
This product has been discontinued.
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code
Dual DVI-D and USB over CAT6 STP Extender
The SmartAVI DVX-2US is 2 DVI-D and USB over CAT6 STP Extender It Includes: DVX2U-TX (Transmitter), DVX2U-RX (Receiver) and 2 x PS5VD4A.
The DVX2U is the perfect solution for extending dual DVI-D displays and USB 1.1 devices to a remote location. It extends DVI-D and USB 1.1 signals to a remote location up to 275 feet away.
SmartAVI DVX-2US Features:
- DDC from internal table for Mac/PC
- Supports Mac, PC, and Linux DVI
- Supports High Resolution 1920x1200 60Hz WUXGA
- Uses universal DVI Single Link connectors
- Zero pixel loss with TMDS signal correction
- Supports all USB 1.1 Devices Transparently (Flash Drives, Printers, Cameras, Scanners, etc.)
- Supports USB 1.1 keyboard and mouse
SmartAVI DVX-2US Applications:
- Medical Applications
- Industrial Work Areas
- Home Theater Integration
- Digital Signage Deployment
- Information Kiosks/Displays
- Film/Recording Studios
SmartAVI DVX-2US Application Diagram
SmartAVI DVX-2US Specifications:
| Mechanical | |
| Width | 8.25 in. (21 cm.) |
| Height | 1.0 in. (2.5 cm.) |
| Depth | 3.5 in. (8.9 cm.) |
| Weight | 1.0 lb. (0.5 kg.) |
| Video | |
| Format | DVI-D Single Line |
| Maximum Pixel Clock | 165 MHz |
| Input Interface (TX) | (2) DVI-D 29-pin female |
| Output Interface (RX) | (2) DVI-D 29-pin female |
| Resolution | Up to 1920x1200@60Hz |
| DDC | 5 volts p-p (TTL) |
| Input Equalization | Automatic |
| Input Cable Length | Up to 20ft. |
| Output Cable Length | Up to 20ft. |
| USB | |
| Signal Type | USB 1.1 |
| Input Interface (TX) | (1) USB Type B (Female) |
| Output Interface (RX) | (4) USB Type A (Female) |
| Power | External 100-240 VAC/5VDC4A @ 20W |
| Environmental | |
| Operating Temperature | 0-55 °C (32-131°F) |
| Storage Temperature | -20-85 °C (-4-185 °F) |
| Humidity | Up to 95% |
