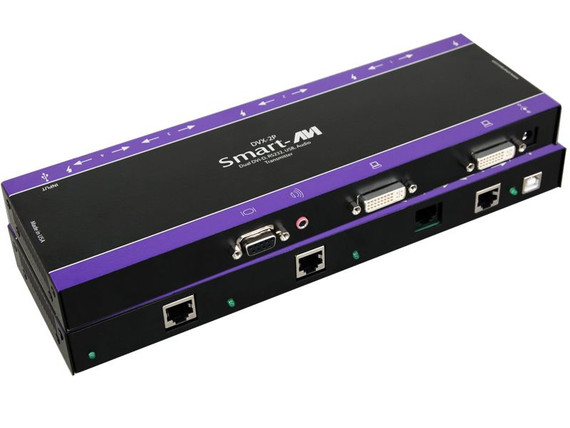

SmartAVI DVX-2P Receiver
Product Code:
DVX-2P-RXS
This product has been discontinued.
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code
DVX-2P Receiver; supports 2 DVI-D, USB, Audio, RS-232
The DVX-2P Receiver can extend up to two DVI-D, USB 1.1, stereo audio and RS-232 signals up to 275 feet using CAT6 cables, while retaining perfectly clear, crisp image and audio quality (image resolution up to 1900 x 1200 at 60Hz). Please note: the DVX-2P-RXS requires a compatible transmitter - purchased separately. For the whole system, please see the DVX-2PS
Applications
- Medical
- Educations
- Military
- Entertainment
Features
- Top image quality at all resolutions
- Video resolutions up to 1900 x 1200 at 60Hz (1280 x 1024 at 75Hz) up to 225 feet
- Internal DCC cables
- Distance: 275 feet with a CAT6 STP cable
- Compatible with all operating systems
- Compatible with all major KVM switches
- Rack mount options (19)
- Supports up to 2 DVI-D sources
- Supports USB 1.1 keyboard and mouse
- Uses easy-to-install, inexpensive pair cable
- Data recovery for digital video
- Fully-compliant with USB 1.1 specifications
- Supports 1.5 and 12Mbps data rates
- External power adaptors for transmitter and receiver units
- Fully-transparent (does not use any emulation)
- Plug-and-play
SmartAVI DVX-2P Receiver
| Mechanical | |
| Height | 1.06 in. (2.69 cm) |
| Width | 3.38 in. (8.58 cm.) |
| Depth | 10.81 in. (27.45 cm.) |
| Weight | 8 lbs. |
| Input Interface | DVI-D (Single Link) |
| Ouput Interface | DVI_D (Single-Link) |
| Resolution | 1920x1200 at 60Hz, resolution up to 1280x1024 min. 75Hz |
| Supported | 480p, 720p, 1080i |
| Data Rate | 1.65 Gbps |
| Audio Bandwidth | 15MHz, 0db |
