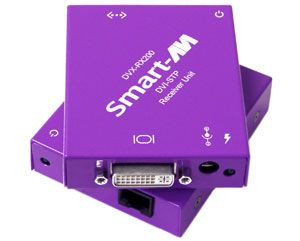

SmartAVI DVX-200PS<br>DVI-D Cat5 Extender
Product Code:
DVX-200PS
This product has been discontinued.
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code
DVI-D point to point CAT5 extender system for PC
The SmartAVI DVX-200 can extend any DVI-D signal up to 220 ft with a single CAT5 cable, while retaining a clear, crisp image of up to a resolution of 1920 x 1200.
SmartAVI DVI Extender Diagram
SmartAVI DVX200 Features and Benefits:
- Top image quality at all resolutions
- Video resolutions up to 1920 x 1200 @ 60Hz (1280 x 1024 @ 75Hz) on all distances up to the maximum distance
- User selectable: DCC--information used from a remotely located monitor, from a locally located monitor, or from an internal DDCTable
- Distances: 220 ft regular STP CAT5e or STP CAT6
- Compatible with all operating systems
- Compatible with all major KVM switches
- Rack mount options (19"): Mount up to 4 devices in a 19"/1U rack mount kit. This saves rack space.
SmartAVI DVX200 Specifications:
| Mechanical | |
| Height | 0.08 in. (2 mm.) |
| Width | 2.75 in. (69.85 mm.) |
| Length | 3.4 in. (86.3 mm.) |
| Weight | 0.20 lb (0.09 kg.) |
| Power Supply | Universal Switch mode PSU (90-240V Input) 5VDC |
| Input Interface | DVI-D (Single Link) |
| Resolution | 1920 x 1200 @ 60 Hz, Resolution up to 1280 x 1024 min. 75H |
| Upgradeable | Onboard Flash |
| Video Interface | DVI |
