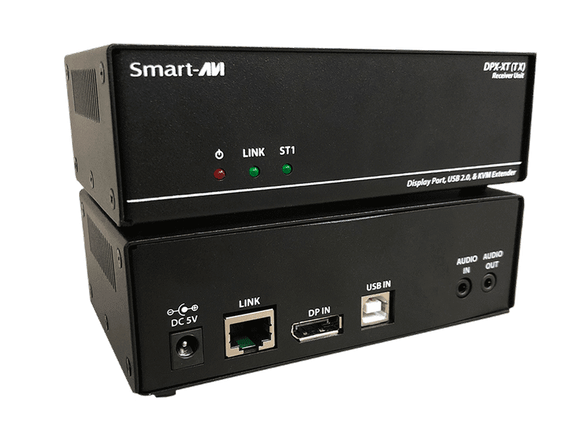

SmartAVI DPX-XT
• Available ⓘ
This product is available for order. Lead times vary by product and manufacturer.
A lead time will be provided after the order has been placed, or upon request before ordering.
Request Current Lead Time
Lead time and availability are subject to change without notice.
Monitors Supported:
Single-Head
MSRP:
$899.00
$674.25
-->
(You save
$224.75
)
4K 30Hz DisplayPort, Transparent USB and Audio Extender
The SmartAVI DPX-XT is a 4K/30Hz DisplayPort video, USB 2.0, (including stereo audio) and fully-transparent signal extender; sending signals up to 330 feet (100m) away using CAT 5e/6/6a cables. The DPX-XT extends fully-transparent USB 2.0, supporting keyboard, mouse, flash-drive, digital cameras, printer(s) and a wide variety of other USB 2.0 devices!
SmartAVI DPX-XT Features
- DisplayPort 1.2, USB extender at 4k/30Hz over Cat 5e/6/6a
- Max Resolution - 3840x2160 (4K) @ 30Hz
- Max. Distance 328 ft. (100m)
- Uncompressed Video
- Transparent USB 2.0
- Single Cat 5e/6/6a carries DP, USB 2.0 and audio
- DisplayPort Auxiliary Bypass
- Plug-and-Play Ready
SmartAVI DPX-XT Applications
- Data Centers
- Office Environments
- Conferencing Rooms
- Convention Centers
- Security Hubs
- Police Stations
- Point of Sale Retail Spaces
- Production & Recording Studios
- Control Rooms
- Home Office and Entertainment Suites
DPX-XT-S Package Contents
- (1) DPX-XT-TX Transmitter
- (1) DPX-XT-RX Receiver
- (2) PS5VDC4A Power Source
- (1) 1-Year Standard Warranty
SmartAVI DPX-XT Resources
SmartAVI DPX-XT Datasheet (PDF)
SmartAVI DPX-XT Manual (PDF)
SmartAVI DPX-XT Specifications
| Mechanical | |
| Width | 5.5 in. |
| Height | 1.875 in. |
| Depth | 3.25 in. |
| Weight | 1.0lb per TX/RX unit |
| Video | |
| Resolution | Up to 4k (3840x2160) @ 30 Hz |
| Format | DisplayPort 1.2 |
| Maximum Pixel Clock | 275 MHz |
| Input Interface (TX) | (1) DP female |
| Output Interface (RX) | (1) DP female |
| DDC | via AUX |
| Input Equalization | Automatic |
| Input Cable Length | Up to 15 ft. |
| Output Cable Length | Up to 15 ft. |
| USB | |
| Signal Type | USB 1.1 and USB 2.0 |
| Input Interface (TX) | 1 x USB Type B |
| Output Interface (RX) | 2 x USB Type A |
| Audio | |
| Frequency | 30KHz to 80KHz |
| Input Interface (TX) | (1) 3.5mm (Female) |
| Output Interface (RX) | (1) 3.5mm (Female) |
| Power | External 100-240 VAC/5VDC4A @20W |
| Environment | |
| Operating Temperature | 0 - 55 °C (32 - 131°F) |
| Storage Temperature | -20 - 85 °C (-4 - 185 °F) |
| Humidity | Up to 95% |
