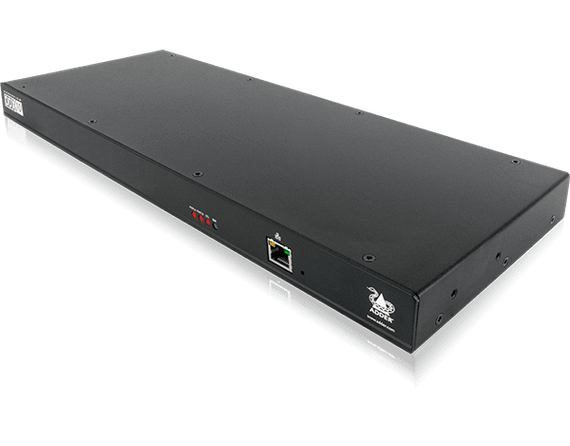

Adder DDX10
• Discontinued ⓘ
This product has been discontinued by the manufacturer and is no longer available for purchase.
Looking for a replacement or comparable alternative?
Request Options
Lead time and availability are subject to change without notice.
Product Code:
DDX10-US
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code
AdderView DDX10 CAT7 KVM Matrix - DVI/DP/VGA - 1 to 9 User, 1 to 9 Port (10 configurable ports)
The Adder AdderView DDX10 is a new breed of high performance KVM Matrix that provides powerful functionality inside a small, compact form factor. Featuring Adder's trusted lossless KVM extension technology with flexi-port switching capability, the DDX enables multiple users to access multiple computers located safely and securely inside your server room. DDX is also available with 30 ports
Adder DDX10 Port Configuration
By default the DDX10 switch provides 8 computer ports (1 to 8) and 2 user console ports (9 to 10), all on its rear panel, however, these designations are not fixed. If your installation requires a greater number of consoles, you can alter the allocation of these standard ports to suit:
Adder DDX10 Features
Flexible 10 port KVM Matrix
AdderView DDX10 is a flexible 10 port KVM Matrix which can be re-configured to match your requirements. Each port can be configured as a computer input or user output. Once configured, simply connect your Computer Access Modules (DDX CAM) and User stations (DDX USR).
High density KVM Matrix
The DDX range features 'zero U' computer access modules and a high density 1U KVM Matrix switch, ideal for installation in heavily populated server racks for small and medium sized applications.
Lossless HD video support
The DDX10 delivers lossless HD video at resolutions of up to 1920x1200 @60Hz providing a real-time, 'at the PC' experience. Frame rate matching makes this product ideal for applications using non standard refresh rates.
Optimal USB technology
DDX10 emulates a fully featured keyboard, mouse and touchscreens to all computers, maintaining fast switching speeds and instant USB interaction. Support for Windows 8 and above.
Multi-view OSD for computer selection
The unique multi-view on-screen-display (OSD) provides every user with a live preview of permitted computers direct on their screen. Users can highlight their selection using a mouse cursor or touch screen. Once highlighted, the user has the ability to choose from 4 different connection modes.
User permissions
Each user station can be granted different access permissions on a per computer basis. Once computer access is permitted, administrators can select which levels of control will be available, allowing users to choose between View only, Shared, Exclusive or Private connection modes.
Exclusive and private connection modes
The DDX10 enables users to work safely and securely with a choice of connection modes. In Exclusive mode, users have full KVM control while being able to share video content with other colleagues. By connecting in Private mode, users can work in privacy.
Multi-head video support
DDX transmitters & receivers can be grouped to form 'Computers' and 'Consoles' that support dual-head & quad-head connectivity. For example, DDX can be used to build a 1 user x 5 computer dual-head matrix.
Secure web control interface
System administrators can securely access the DDX10 management tools to configure system settings, set access privileges and control video connections. The interface is secured using HTTPS & administrators must login each time they connect. An API enables switch control from a 3rd party control system.
'Zero U' dongles
Powered by USB, the digital computer access modules sit in-line and are ideal for racks with limited available space. Modules are available in DVI, VGA, and DisplayPort options.
Redundant power
For mission critical applications, DDX10 now supports dual power inlets (Dual-AC). If one source fails, the DDX10 will switch sources to the other power supply, so as not to interrupt normal use of the connected servers.
DDX10 Package Contents
- (1) DDX10 KVM Switch
- (2) 1U, 19" rack mount brackets and (4) screws
- (1) Power adapter and US-specific power lead
- (1) Information wallet containing: Quick start guide and Safety document
- (4) Self-adhesive rubber feet
- (1) 2-Year Limited Warranty & Lifetime World Class Support
DDX10 Resources
Adder DDX10 Datasheet (PDF)
Adder DDX10 Manual (PDF)
Adder DDX-series Brochure (PDF)
Case Studies
Solid State Logic (PDF)
Adder DDX10-US Specifications
| Mechanical | |||||||||||||
| Height | 1.22 in. (31 mm.) | ||||||||||||
| Width | 17.13 in. (435 mm.) | ||||||||||||
| Depth | 6.3 in. (160 mm.) | ||||||||||||
| Weight | 4.2 lbs. (1.9 kg.) | ||||||||||||
| Rack Mount | Compact 1U high metal case construction suited for 19" EIA rack mounting (rack mount kit included) | ||||||||||||
| System Connections | 10 x 8p8c ports for computer and user connections (1 front panel port is dedicated for users). Maximum of 9 computer connections, minimum of 1 computer. Maximum of 9 user connections, minimum of 1 user connection. | ||||||||||||
| Peripheral connections | 1 x 8p8c for 10/100/1000 Ethernet connection 1 x 9way D-type RS232 options port. | ||||||||||||
| Power | 2 x locking, 3-pin jack (1 x power adapter included), 100-240VAC 50/60Hz, 0.7A, input to power adapter, 12VDC 18W output from power adapter. | ||||||||||||
| Environmental | |||||||||||||
| Operating Temperature | 0° to 40° / 32° to 104° | ||||||||||||
| Local client requirements | Any of the following: Internet Explorer version 10 or 11 Firefox version 24 ESR and above Chrome version 43. | ||||||||||||
| CAT Cable Extension Distance Details | Only use CAT7 or double shielded CAT6a cables with the DDX10; CAT5 cables may damage the unit and will void the manufacturer warranty. Recommended cables are CAT7 shielded foiled twisted pairs:
*Note: | ||||||||||||
| Approvals | CE, FCC |
Adder DDX10 is also known as DDX 10, and DDX10-US.
