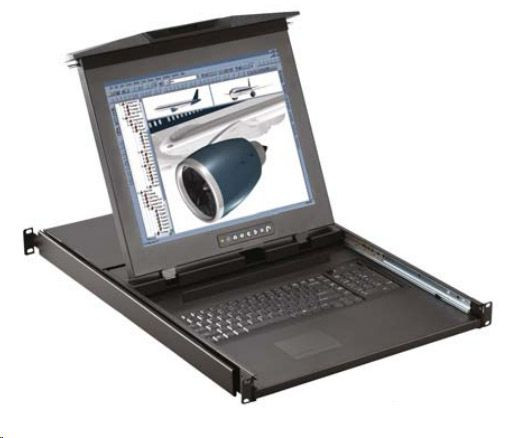

Cyberview D117-U3201
MSRP:
$2,391.00
$2,206.00
-->
(You save
$185.00
)
1U Rackmount Monitor Drawer 17" LCD, 32-port Combo Cat6 KVM
The D117-U3201e is a 1U Dual Slide Rackmount LCD Monitor with 17" LCD with integrated 1-console (1 x local), 32 port Combo Cat6 KVM Switch. The keyboard is a 104 key notepad keyboard with touchpad mouse. The Dual Slide technology allows the LCD to be left up/open when the rack door is closed.
"Ne" style keyboard included with D117-U3201e
D117-U3201e Features & Benefits:
- 1U dual slide 17" LCD console drawer
- 104-key keyboard with touchpad
- Enhanced aesthetics with new molded front panel and two point lock
- Combo interface either PS/2 or USB for single console drawer
Combo Cat6 KVM Switch Features & Benefits:
- Combo Cat6 KVM with 32 ports in 1U
- Up to 40 meters between your servers & KVM ports
- Cascade switches up to 8 levels & Mix switches between Cat6 & Combo DB-15 KVM
- Support DVI-USB, VGA-USB & VGA-PS/2 server interface
- Mix PS/2, USB & SUN with Multi-Platform switch capability
- Multi lingual on screen display menu
 D117-U3201e Rackmount LCD Diagram |
D117-U3201e Specifications:
| Mechanical | |
| Height | 1.73 in. (44 mm.) |
| Width | 17.4 in. (442 mm.) |
| Depth | 25.6 in. (650 mm.) |
| Weight | 27.7 lbs. (12.6 kg.) |
| LCD Monitor | |
| 4:3 Screen Size | 17" TFT |
| Native Resolution | 1280 x 1024 |
| Brightness (cd/m2) | 250 |
| Contrast Ratio | 1000 : 1 |
| Viewing Angle (H x V) | 160° x 160° |
| Display Color | 16.7M |
| Active area (mm) | 338x270 |
| Signal Input | VGA |
| KVM Switch | |
| KVM Port | 32 x RJ-45 connector |
| KVM Connectivity | DVI-D/VGA connector dongle up to 40 meters (132 ft) bia Cat6/Cat5 cable |
| Local Console | Nil for LCD console drawer version |
| Expansion | Up to 256 servers by 8-level cascade |
| Compatibility | Mix PCs, SUN and Mac G3 / G4 Mac / iMac Windows 7 / Vista / 2003 / XP, Linux, Unix |
| Power | 100 to 240VAC, 50 / 60 Hz OR AC / DC power adapter 12V@3.3A (optional) |
| Environmental | Operating / Storage : 0 to 50°C / -5 to 60°C Relative humidity : 90%, non-condensing Shock : 50G peak acceleration ( 11 ms, half-sine wave ) Vibration : 58~100Hz / 0.98G ( 11 ms/ cycle) |
| Regulatory Approval | FCC, CE |
1U Rackmount Monitor Drawer 17" LCD, 32-port Combo Cat6 KVM
The D117-U3201e is a 1U Dual Slide Rackmount LCD Monitor with 17" LCD with integrated 1-console (1 x local), 32 port Combo Cat6 KVM Switch. The keyboard is a 104 key notepad keyboard with touchpad mouse. The Dual Slide technology allows the LCD to be left up/open when the rack door is closed.
"Ne" style keyboard included with D117-U3201e
D117-U3201e Features & Benefits:
- 1U dual slide 17" LCD console drawer
- 104-key keyboard with touchpad
- Enhanced aesthetics with new molded front panel and two point lock
- Combo interface either PS/2 or USB for single console drawer
Combo Cat6 KVM Switch Features & Benefits:
- Combo Cat6 KVM with 32 ports in 1U
- Up to 40 meters between your servers & KVM ports
- Cascade switches up to 8 levels & Mix switches between Cat6 & Combo DB-15 KVM
- Support DVI-USB, VGA-USB & VGA-PS/2 server interface
- Mix PS/2, USB & SUN with Multi-Platform switch capability
- Multi lingual on screen display menu
D117-U3201e Rackmount LCD Diagram |
D117-U3201e Specifications:
| Mechanical | |
| Height | 1.73 in. (44 mm.) |
| Width | 17.4 in. (442 mm.) |
| Depth | 25.6 in. (650 mm.) |
| Weight | 27.7 lbs. (12.6 kg.) |
| LCD Monitor | |
| 4:3 Screen Size | 17" TFT |
| Native Resolution | 1280 x 1024 |
| Brightness (cd/m2) | 250 |
| Contrast Ratio | 1000 : 1 |
| Viewing Angle (H x V) | 160° x 160° |
| Display Color | 16.7M |
| Active area (mm) | 338x270 |
| Signal Input | VGA |
| KVM Switch | |
| KVM Port | 32 x RJ-45 connector |
| KVM Connectivity | DVI-D/VGA connector dongle up to 40 meters (132 ft) bia Cat6/Cat5 cable |
| Local Console | Nil for LCD console drawer version |
| Expansion | Up to 256 servers by 8-level cascade |
| Compatibility | Mix PCs, SUN and Mac G3 / G4 Mac / iMac Windows 7 / Vista / 2003 / XP, Linux, Unix |
| Power | 100 to 240VAC, 50 / 60 Hz OR AC / DC power adapter 12V@3.3A (optional) |
| Environmental | Operating / Storage : 0 to 50°C / -5 to 60°C Relative humidity : 90%, non-condensing Shock : 50G peak acceleration ( 11 ms, half-sine wave ) Vibration : 58~100Hz / 0.98G ( 11 ms/ cycle) |
| Regulatory Approval | FCC, CE |
