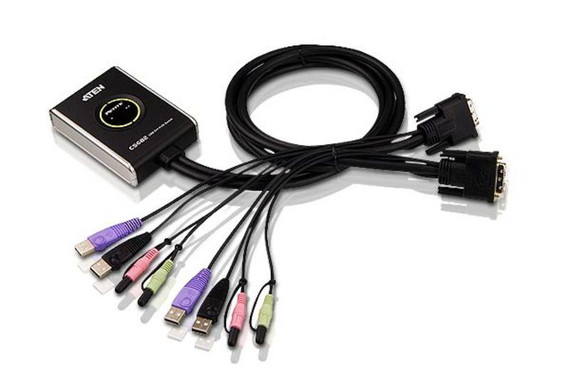

ATEN CS682
Product Code:
CS682
This product has been discontinued.
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code
2-Port USB 2.0
DVI KVM Switch
DVI KVM Switch
The ATEN CS682 takes a giant step forward over past models by offering DVI functionality, USB 2.0 peripheral sharing, and a rich bass experience for 2.1 surround systems. The ATEN CS682 features a newly implemented remote port selector; you can now conveniently control port switching from the desktop while the switch itself remains hidden out of sight.
ATEN CS682 features enhanced Video DynaSync technology, which stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution. In addition to new hotkeys, the CS682 offers the latest mouse port-switching functionality - simply double-click on the scroll wheel of a USB mouse to change ports. Finally, the CS682's new Power-On detection feature means that if one of the computers is powered off, the CS682 KVM Switch will automatically switch to the other powered-on computer.
Featuring an unbeatable combination of DVI functionality, USB 2.0 peripheral sharing convenience, and enhanced user-friendly operations, the ATEN CS682 allows users to keep up with the latest innovations in desktop multimedia applications.
ATEN CS682 Features:
- One DVI video console controls two USB computers
- Fully DVI-Digital specification compliant
- USB 2.0 mouse port can be used for USB hub and USB peripheral sharing*
- Computer selection via remote port selector, hotkeys, and USB mouse
- Audio enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
- Multiplatform support - Windows, Linux, Mac, and Sun
- Compact design, built-in all-in-on cables (2 x 1.2 m)
- Independent switching of the KVM and Audio focus - one computer can have the KVM focus while the other has the audio focus
- Superior video quality - up to 1920 x 1200
- Compatible with widescreen LCD monitors
- Video DynaSync - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Supports multimedia keyboards
- Power on detection - if one computer is powered off, the switch will automatically switch to the next powered-on computer
- Supports wireless keyboards and mice
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
- Mac/Sun keyboard support and emulation**
- HDCP Compliant
- Non-Powered
- Firmware upgradable
* 1. PC keyboard combinations emulate Mac/Sun keyboards
2. Mac/Sun keyboards only work with their own computer
CS682 Hot Key Sequence
| Hotkey Mode (Invoke Hotkeys) | Port Selection | Invoke OSD |
| Default: [Scroll Lock] [Scroll Lock] | Default: [Scroll Lock] [Scroll Lock] [Enter] | Default: None |
| Alternate: [Ctrl] [Ctrl] | Alternate: [Ctrl] [Ctrl] [Enter] | Alternate: None |
Aten CS682 Diagram
Aten CS682 Requirements:
- Console
- A DVI compatible monitor
- USB keyboard and mouse
- Microphone and speakers (optional)
- Computers
- A DVI port
- Type A USB port
- Audio ports (optional)
Aten CS682 Package Content:
- 1 CS-682 2-port USB 2.0 DVI KVM Switch with built-in KVM and audio cables
- 1 Remote Port Selector
- 1 User Manual
- 1 Quick Start Guide
Aten CS682 Specifications:
| Mechanical | Unit | |
| Height | 0.98 in. (2.50 cm.) | |
| Width | 3.07 in. (7.80 cm.) | |
| Depth | 4.37 in. (11.10 cm.) | |
| Weight | 1.1 lbs. (.5 kg.) | |
| Environmental | ||
| Operating Temperature | 32-122 F (0-50 C) | |
| Storage Temperature | -4-140 F (-20-60 C) | |
| Humidity | 0-80% RH, Non-condensing | |
| LEDs | ||
| KVM | 2 (Green) | |
| Remote Port Selector | 2 (Green) | |
| Port Selection | Front Panel Pushbuttons; Hotkey | |
| Video Resolution | 1920 x 1200 | |
| Power Consumption | DC 5V, 3.05W | |
| Scan Interval | 5 seconds default (1-99 secs) | |
| Supported Hardware | ||
| Emulation | USB keyboard/mouse | |
| Keyboard, Mouse & Monitor | 2 x USB Type A 1 x DVI-D | |
| Audio | 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) | |
| KVM Ports | 4 x USB Type B 2 x DVI-D 2 x Mini Stereo Jack (Green) 2 x Mini Stereo Jack (Pink) | |
| Remote Port Selector | 1 x Mini Stereo Jack | |
| Power | 1 x DC 5V Jack | |
| USB Hub | 2 x USB Type A | |
| Standards | ||
| Approved Agency | RoHS | |
