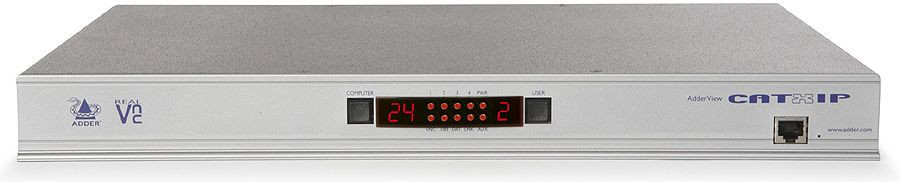

Adder AVX4024IP

The AdderView CATx Series AVX4024IP is a 24 port secure, KVM via CATx switch that allows 4 concurrent users (1x local PS/2 or USB, 2 x remote over CATx, 1 x global over IP) with BIOS-level control of up to 24 multiplatform servers. A "plug-and-play", 1U appliance, the AdderView AVX4024IP is a completely self-contained system that installs in minutes combining high security, flexibility, integrated remote power control, faultless quality video and optional CD quality audio.

Adder AVX4024IP Layout

 FULL MANUAL TALK TO AN EXPERT

Adder AVX4024IP Features

•

  Global remote access to severs (1 IP User)

  • Use Java web browser via HTTPS or Real VNC client software that, unlike HTTPS web browsers, is designed specifically for secure high performance KVM over IP applications
  • Employing enterprise grade security (using AES 128 bit encryption and RSA 2048 bit public key authentication)
•

  Integrated CATx extenders (2 Remote Users)

  The AdderView AVX4024IP can be controlled by two users from up to 985ft (300m) away over CATx cable using the AdderLink X200 or X100 receiver and the integrated CATx extender.

  Compare receivers

•

  User access & management

  One local user, two extended, and/or four extended remote user can control up to 24 multi-platform servers simultaneously. Up to 16 different user profiles can be stored with access rights for each user defined.



•

  Faultless video quality

  AdderView CATx IP 4000 provides exceptionally high video performance to local, remote and global users alike, supporting up to 1900x1440 resolutions (1600x1200 on remote and IP links) with DDC emulation which is further enhanced by DC balancing to ensure full and true color.

•

  Computer Access Modules for any application

  Flash upgradeable CAMs are available for VGA and DisplayPort video + PS/2, USB and Sun keyboard and mouse support with optional audio. KVM communication from switch to target devices can be up to 50m (164ft).

  Compare CAMs

•

  Optional CD quality audio

  AdderView CATx IP 4000 switches support CD quality 44.1kHz digital stereo audio when optional audio enabled CAM modules are used.



•

  Channel selection options

  The AdderView AVX4024IP can be switched using selectable keyboard hotkeys, an on-screen-display (OSD), 3 button mice, or with ASCII codes via serial RS233. These switching options allow you to rapidly reassign connected devices to any of the connected computers.

•

  Redundant power

  For mission critical applications, CatX IP 4000 series now supports dual power inlets (Dual-AC). If one source fails, the AVX4024IP will switch sources to the other power supply, so as not to interrupt normal use of the connected servers.

•

  Multi-platform support

  The AdderView CATx IP 4000 switches support any computer platforms with PS/2, USB and Sun keyboard and mouse interfaces. Country code reporting, DDC and continuous keyboard and mouse emulation ensure faultless operation.



•

  Serial RS232 port for control, synchronization and upgrade

  • Remotely switched using simple ASCII codes
  • Integration with RS232 controlled power switches to provide a complete hard reboot function
  • Sync with other CATx IP 4000 switches for multi-video applications
  • Upload/download user and host information
  • Flash upgrade
•

  Easy Expansion (Cascading Units)

  Expand simply by using just CATx cable to link units. The AdderView automatically detects cascade connections to support up to 128 computers.

•

  1U rack mount / rack drawers

  CATx IP 4000 switches can be mounted in 1U of rack height giving a maximum of 24 ports per 1U (rack brackets included). Small size also makes the units ideal for mounting behind KVM rack drawers.



KVM Receivers for AdderView CATx

---

One extender required per remote user. X200 units are similar to X100 except that they can accommodate a second link to another switch or computer. X200 units also have USB connections rather than PS/2-style keyboard and mouse ports. Three different variants are available for each X100 or X200 unit - AS/R variants have audio and video skew circuitry to overcome extreme video degradation problems. A/R variants lack the skew circuitry and R variants do not have skew circuitry or audio. Each module is supplied with its own power adapter and country-specific power lead.

Part #	KB/MS	Audio	Video De-Skew	2 Sources (2-Port KVM)
X200R	USB			check_circle
X200A/R	USB	check_circle		check_circle
X200AS/R	USB	check_circle	check_circle	check_circle
X100R	PS2
X100A/R	PS2	check_circle
X100AS/R	PS2	check_circle	check_circle

Adder AVX4024IP Specifications

AVX4024IP is also known as the AVX4024IP-US and AVX4024IP-USA.
