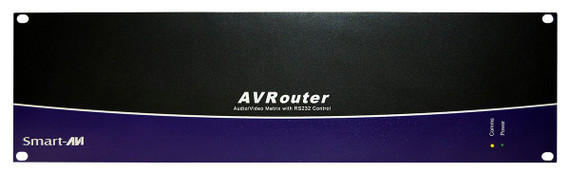

SmartAVI AV Router 8x8 AS
Product Code:
AV08X08AS
This product has been discontinued.
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code
SmartAVI AV Router 8x8 AS
The AVRouter 16 series of products provides an unprecedented range of switching and distribution equipment for XVGA and HD video by combining the features of a high-quality video matrix, interactive infrared control, and an easy to use Windows¨ - based control software.
*Component + Stereo Audio to 8 remote monitors/speakers
Features
- High quality audio and video switching
- High resolution up to 1920 x 1200
- InfraRed and RS422 control
- PC Windows software control
- Can be mixed with other video signal (RGB, YUV, RGBS)
Applications
- Wall Displays
- Audio Visual Presentation
- Digital media
- Shopping centers
- Airports
- Security
- Dealer rooms
- Point of sale
- Control rooms
- Hotels
| Mechanical | |
| Height | 5.24 in. (3.81 cm) |
| Width | 19 in. (21.84 cm.) |
| Depth | 11.25 in. (13.71 cm.) |
| Bandwidth | 400MHz |
| Input Signal Level | 1 volt pk-pk into 75R |
| Output Impedance | 150 Ohms |
| Input Impedance | 75 Ohms |
| Format | VGA / SVGA / XGA / RGBHV / RGsB / CVBS / YC / YUV / RGBS |
| Syncs | TTL5VDC |
| RS-232 | 9600bps, DB9 Female, TX, RX, GND |
| IR | 3.5mm connector with 38khz |
| GUI | Windows Xp, Windows 7 compatible |
| Power Voltage | 90-230V IEC 1A A/S 50/60 Hz |
