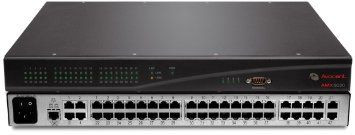

Avocent AMX5020-001
Replacement:
4899
$4,235.00
-->
Simultaneous Access to 42+ Servers from 4 User Stations
The Avocent AMX5020 KVM switch is a 4x42 appliance with a field-proven scalable architecture that easily accommodates additional servers and users. The AMX5020 matrix switch allows simultaneous access, supports multi-platform server environments and provides non-blocked access to servers. The AMX5020 switch includes the AMWorks Java-based system management tool.
Avocent AMX5020 KVM Switch Diagram
Avocent AMX5020 Features and Benefits:
- Provides a solution for consolidating the local ports of KVM/IP products
- Provides full, non-blocked access to servers
- Delivers real-time, high bandwidth video up to 1,000 feet from the server
- Front panel LED indicators add to ease-of-use Includes JAVA-based AMWorks software for centralized management
Network connection on each appliance for ease of management
The AMIQ server interface module, which provides connection from the server to the switch, reduces cable bulk and saves rack space - Compact design conserves rack space Scalable architecture makes it easy to add and support more servers and users
- Seamlessly integrate existing KVM switches into an AMX KVM matrix solution
Avocent AMX5020 Specifications:
| Mechanical | |
| Height | 1.7 in. (4.3 cm) |
| Width | 17.2 in. (43.2 cm) |
| Depth | 13.9 in. (35.2 cm) |
| Weight | 9.3 lbs. (4.2 kg) |
| Environmental | |
| Operating Temperature | 32F (0C) to 122F (50C) |
| Storage Temperature | 4F (-20C) to 122F (50C) |
| Power | |
| Operating Voltage | 100 - 240 VAC |
| Power Frequency | 50 - 60 Hz |
| Supported Hardware | |
| Computers | AMIQ-PS2, AMIQ-Sun, AMIQ-USB server interface modules: IBM PC/AT, PS/2 and 100% compatibles |
| Monitor | VGA, SVGA, XGA, SXGA, up to 1600 x 1200 @ 75 Hz resolution |
| Peripherals | AM5110, AMX5120 & AMX5130 User Station: PS/2 keyboard, PS/2 mouse, IntelliMouse (PS/2 only), Sun Type 5 and Type 6 |
| Standards | |
| Approved Agency | UL,cUL,FCC,VCCi,CE, C-Tick |
Simultaneous Access to 42+ Servers from 4 User Stations
The Avocent AMX5020 KVM switch is a 4x42 appliance with a field-proven scalable architecture that easily accommodates additional servers and users. The AMX5020 matrix switch allows simultaneous access, supports multi-platform server environments and provides non-blocked access to servers. The AMX5020 switch includes the AMWorks Java-based system management tool.
Avocent AMX5020 KVM Switch Diagram
Avocent AMX5020 Features and Benefits:
- Provides a solution for consolidating the local ports of KVM/IP products
- Provides full, non-blocked access to servers
- Delivers real-time, high bandwidth video up to 1,000 feet from the server
- Front panel LED indicators add to ease-of-use Includes JAVA-based AMWorks software for centralized management
Network connection on each appliance for ease of management
The AMIQ server interface module, which provides connection from the server to the switch, reduces cable bulk and saves rack space - Compact design conserves rack space Scalable architecture makes it easy to add and support more servers and users
- Seamlessly integrate existing KVM switches into an AMX KVM matrix solution
Avocent AMX5020 Specifications:
| Mechanical | |
| Height | 1.7 in. (4.3 cm) |
| Width | 17.2 in. (43.2 cm) |
| Depth | 13.9 in. (35.2 cm) |
| Weight | 9.3 lbs. (4.2 kg) |
| Environmental | |
| Operating Temperature | 32F (0C) to 122F (50C) |
| Storage Temperature | 4F (-20C) to 122F (50C) |
| Power | |
| Operating Voltage | 100 - 240 VAC |
| Power Frequency | 50 - 60 Hz |
| Supported Hardware | |
| Computers | AMIQ-PS2, AMIQ-Sun, AMIQ-USB server interface modules: IBM PC/AT, PS/2 and 100% compatibles |
| Monitor | VGA, SVGA, XGA, SXGA, up to 1600 x 1200 @ 75 Hz resolution |
| Peripherals | AM5110, AMX5120 & AMX5130 User Station: PS/2 keyboard, PS/2 mouse, IntelliMouse (PS/2 only), Sun Type 5 and Type 6 |
| Standards | |
| Approved Agency | UL,cUL,FCC,VCCi,CE, C-Tick |
