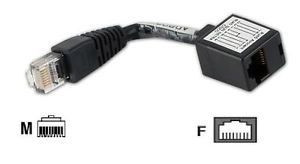

Cyclades ADB0039
• Available ⓘ
This product is available for order. Lead times vary by product and manufacturer.
A lead time will be provided after the order has been placed, or upon request before ordering.
Request Current Lead Time
Lead time and availability are subject to change without notice.
$22.00
-->
Cyclades RJ-45 to RJ-45 (Sun/Cisco) crossover adapterCabling Diagrams: Adapter (ADB0039)
RJ-45 (Cyclades) to RJ-45 (Sun/Cisco), crossover
RJ-45 RJ-45
Cyclades Sun/Cisco
-------- ---------
3 TxD ------------ RxD 6
6 RxD ------------ TxD 3
4 Gnd --------|--- Gnd 4
|--- Gnd 5
2 DTR ------------ DSR 7
7 DCD ------------ DTR 2
1 RTS ------------ CTS 8
5 CTS ------------ RTS 1
RJ-45 (Cyclades) to RJ-45 (Sun/Cisco), crossover
RJ-45 RJ-45
Cyclades Sun/Cisco
-------- ---------
3 TxD ------------ RxD 6
6 RxD ------------ TxD 3
4 Gnd --------|--- Gnd 4
|--- Gnd 5
2 DTR ------------ DSR 7
7 DCD ------------ DTR 2
1 RTS ------------ CTS 8
5 CTS ------------ RTS 1
