Zoom the image with the mouse
Minicom by Tripplite
Product Code:
0SU52088
This product has been discontinued.
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code

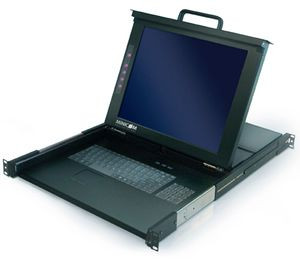

1U, 17" Rackmount LCD Drawer
The Minicom by Tripplite SmartRack 0SU52088 is a 17", Single-rail Rackmount LCD.
Minicom by Tripplite 0SU52088 Features & Benefits:
- Space saving- When every U counts and every cable counts.
- Cost saving- Save on total cost of ownership of your server room by freeing up more U space for servers or devices.
- CAT5 technology- Eliminate cable clutter at the rack. Use standard UTP or FTP cables.
- Multi-platform- Supports PS/2, SUN and USB servers.
- Flexibility- Use CAT5 cabling to customize your server room.
- Multi-layer security through OSD- Three levels of security ensure only authorized users can control or access the system. 128-bit SSL protocol guards and protects your corporate data to efficiently prevent hacking and security breaches.
- Flash upgrade- Field firmware upgrade for the switches and ROC's.
Minicom by Tripplite 0SU52088 Specifications:
| Mechanical | |
| Height | 1.7 in. (44 mm.) |
| Width | 18.5 in. (470.1 mm.) |
| Depth | 17.6 in. (447.5 mm.) |
| Environmental | |
| Operating Temperature | 0º - 40º degree C/32º -104ºF |
| Storage Temperature | 20º - 40º degree C/-4º - 104ºF |
| Humidity | 10%~90%RH |
| Power | |
| Input | 100-240 VAC input |
| Monitor | |
| Display Size | 17" |
| Panel Type | Active Matrix TFT LCD |
| Resolution Capabilities | Maximum Resolution up to 1280X1024 |
| Pixel Pitch | Supports 0.264mm |
| Viewing Angle | Right-Left view 60º - 70º Up-Down view 45º - 60º |
| Contrast Ratio | 450:1 |
| Brightness | White 250cd/m2 |
| Back Light | Four Lamps |
| Supported Colors | 16.7M Colors |
| Compatibility | |
| Operating Systems | Windows, Linux, Unix and all other major operating systems |
| Response Time | Rising time 2-6ms Delay time 14-24ms |
| System Cables | CAT5 FTP or UTP 2x4x24 AWG solid wire |
| Sync | 45~80KHZ |
| Keyboard/Mouse | 106 key PS/2 keyboard with touch pad mouse |
| Connection Types | |
| System | 16 RJ45 |
| Serial | RJ11 |
| Computer to Switch Distance | Up to 30m/100ft |
This unit is also known as the 0SU52088/EN
